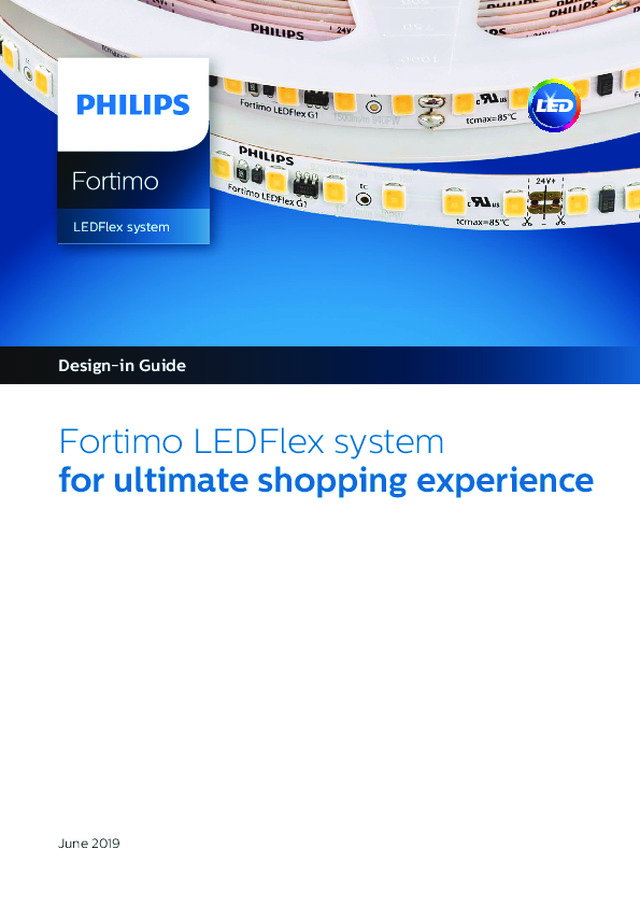

Guía de diseño Fortimo LEDFlex

Philips

Guía de diseño Fortimo LEDFlex

Publicado: 16 de julio de 2019 · Categoría: Guías y anexos

De este documento

Xitanium LEDFlex system Design-in Guide Fortimo LEDFlex system for ultimate shopping experience June 2019 Contents Important Warranty Warnings and system restrictions System disposal 3 3 3 3 Electrical installation Drivers for LEDFlex Series and Parallel connections (for class 2 in North America) 10 10 Products and tools 4 Maximum length of a series connection 11 Thermal design Introduction Key Definitions: Test Requirements Module Tcase point location Cooling Drivers Tape adhesion 5 5 5 5 5 6 6 7 Driver mapping 12 EMC 18 Chemical compatibility 19 Examples of system calculation 20 Cutting, connecting and tape adhesion Cutting and connecting the LEDFlex with 5cm (C5) cuttable length Cutting and connecting the LEDFlex with 10cm (C10) cuttable length 8 2 - 21 Design-in Guide - LEDFlex system 10 8 9 June 2019 Important Please take the time to read this installation guide before you install this Philips LED product and driver. The guide contains important information regarding installation and operation. Warranty Warranty only applies when the appropriate Philips LED driver and Philips cabling (as described in this guide and leaflets) are used. Please visit our website www.philips.com/ OEM or contact your local sales office for more information. Warnings and system restrictions This product is for built-in use only. (Its required to cover the LEDFlex) More detailed information on design-in can be found on our website: www.philips.com/oem Do not switch on the LEDFlex when on...
